Casement

Opens out and hinged on the side.Our best performing windows against snow, wind and rain.

Designed to keep harsh weather out, our casement windows are energy efficient, reliable and practical. They open out to a full 90 degrees via dual- or single-arm crank operators and are hinged at the side, making them a great choice for the main and upper levels of your home.

View our Casement Window gallery here

Find a Dealer
For product brochures, detailed specs and other information,
Visit our Pro Resources.

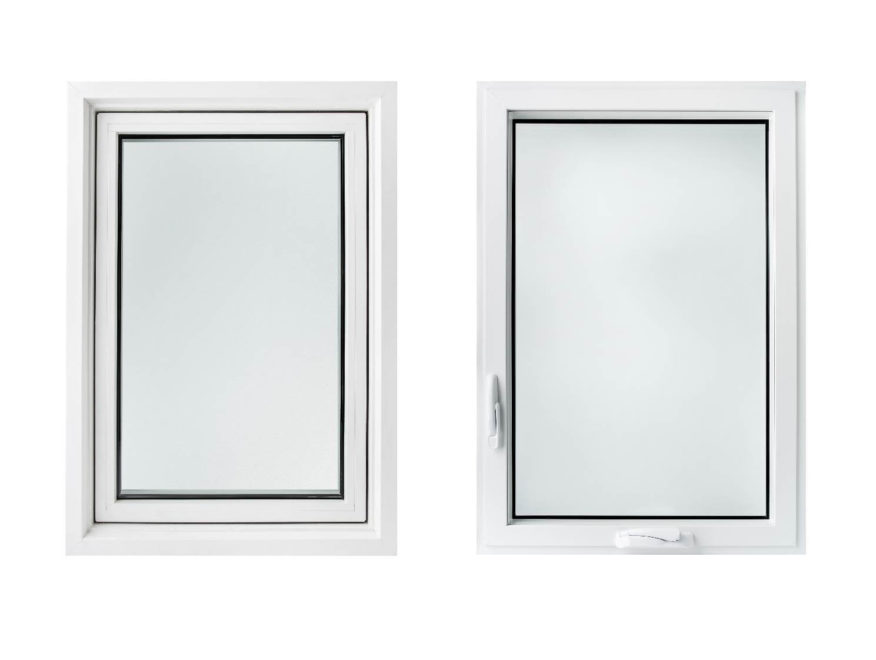

A 2020 Kohltech Supreme Casement window, white

SUPREME CASEMENT

Supreme Casement windows add a dramatic splash of elegance to your home while maintaining the durability and performance of vinyl. Available in a variety of designer colours and with a choice of decorative Grilles, Supreme Casement windows are engineered with a sturdy master frame construction.

NAFS Rating
Fixed Sash (2010) NFRC/Energy Star: NFRC
AAMA/WDMA/CSA/I.S.2-/A440-08: CW-PG55-FW
Size tested: 60″x78″ / 78″x60″
Operator (2010) NFRC/Energy Star: NFRC
AAMA/WDMA/CSA/I.S.2-/A440-08: AW-PG70-C
Size tested: 32″x63″
Operator (2020) NFRC/Energy Star: NFRC
AAMA/WDMA/CSA 101/I.S.2-/A440-17,CSA A440S1:19 : CW-PG55-C
Size tested: 38″x78″

Click here for the complete Supreme Window Thermal Performance, ENERGY STAR, and NAFS Ratings

SELECT CASEMENT

The Select Casement window offers the right balance of beauty, utility, and efficiency. With standard features like triple weather-stripping, a concealed energy efficient drain hole, and standard warm edge spacer, it’s easy to see why.

NAFS Rating
Fixed Sash NFRC/Energy Star: NFRC
AAMA/WDMA/CSA/I.S.2-/A440-08: LC-PG40-FW
Size tested: 60″x39.75″
Operator NFRC/Energy Star: NFRC
AAMA/WDMA/CSA/I.S.2-/A440-08: LC-PG60-C
Size tested: 34″x80″

Click here for the complete Select Window Thermal Performance, ENERGY STAR, and NAFS Ratings

Amazing Red

Crimson Red

Cranberry

Sunglow

Cedar

Universal Brown

Sable

Forest Green

Old World Blue

Wedgewood

Dover Grey

Black

Bronze

Iron Ore

Commercial Brown

Dark Drift

Windswept

Slate

Brownstone

Sandstone

Clay

Grey

Sandalwood

Kohltech Tan

Cashmere

Wicker

Maize

Ivory

White

*Custom colours are available.

TRIPLE ENERGLAS® PLUS

Glass technology at its best. Provides ultimate energy efficiency by combining a triple glazed unit with two pieces of high solar gain LoE and both cavities filled with inert gas, and warm edge silicone spacer for the highest ER numbers.

TRIPLE ENERGLAS® PLUS LSG

Provides ultimate comfort by combining a triple glazed unit with two pieces of low solar gain LoE and both cavities filled with inert gas and warm edge silicone spacer for the lowest U values.

ENERGLAS®

Double glazed unit combining high solar gain LoE, Argon gas and Ultra spacer for high ER numbers with a high solar gain.

ENERGLAS® LSG

Double glazed unit combining low solar gain LoE, Argon gas and Ultra spacer for the low U values with low solar gain.

LOE/ARGON

Double glazed unit combining high solar gain LoE, Argon gas and Intercept Tin plate spacer for high ER numbers with a high solar gain.

LOE/ARGON LSG

Double glazed unit combining low solar gain LoE, Argon gas and Intercept Tin plate spacer for low U values with low solar gain.

CLEAR

Our standard glass and most economical choice.

Grey
Bronze
Clear
Rain
Pinhead
Satin Deco

Grille Options

Choose from a variety of Grille types to enhance the look of your windows.

3/4” GROOVED GEORGIAN GRILLE
1” GROOVED GEORGIAN GRILLE
5/8” FLAT COLONIAL GRILLE
5/16” SLIMLINE
7/8” SIMULATED DIVIDED LITE*
1 1/8” SIMULATED DIVIDED LITE*
2” SIMULATED MEETING RAIL

*Simulated Divided Light (SDL) Grille options are installed on the outside of the glass unit.

Grille Pattern

Choose from a variety of Grille patterns to enhance the aesthetic of your windows.

RECTANGULAR
CRAFTSMAN
VERTICAL
LADDER
PRAIRIE
DOUBLE PRAIRIE

3 1/2” Vinyl Brickmould/Casing

available with j-trim and subsill

3 1/2” 180 Vinyl Brickmould/Casing

available with j-trim and subsill

2” Reno Vinyl Brickmould/Casing

available with subsill

2” 180 Vinyl Brickmould/Casing

available with j-trim and subsill

1.5” Vinyl Brickmould/Casing

available with j-trim and subsill

1.5 Reno Vinyl Brickmould/Casing

available with subsill

1.5 Extended 2.25 Vinyl Brickmould/Casing

available with subsill

7/8” Vinyl Brickmould/Casing

available with j-trim and subsill

Flashing Flange

Nailing Fin

*not available on Tilt & Turn windows

Plain Frame

Flush Frame Extension

Subsill

Handles

Choose the handles that best suit your windows and home decor. We offer a wide variety of finish and style options. Plus all hardware can be upgraded to enhance the security and improve the appearance of your windows.

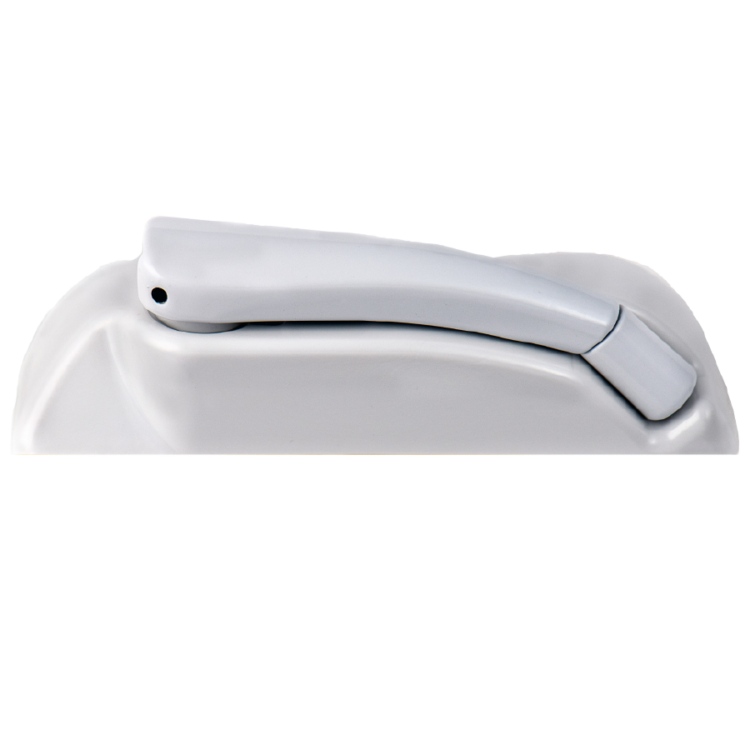

Casement Folding Handle - White

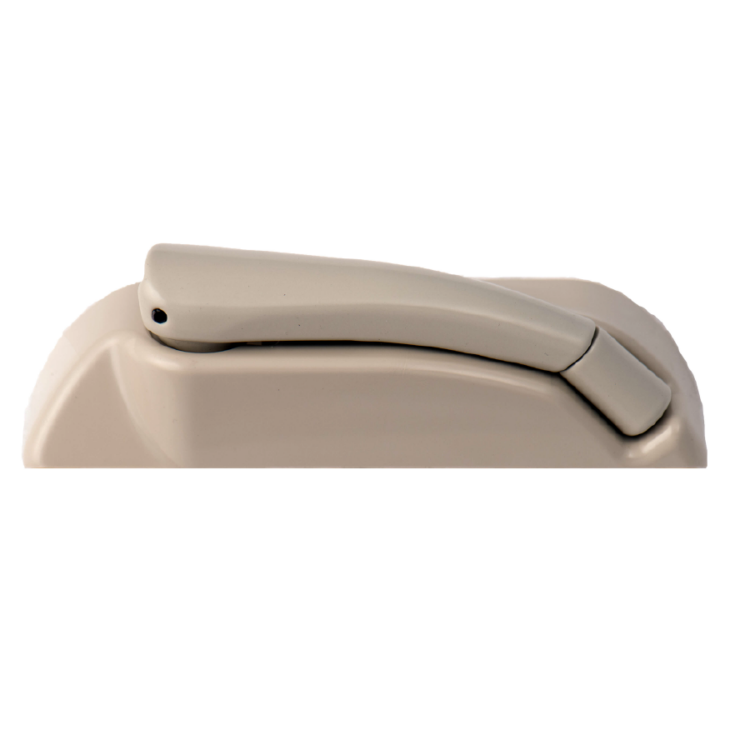

Casement Folding Handle - Tan

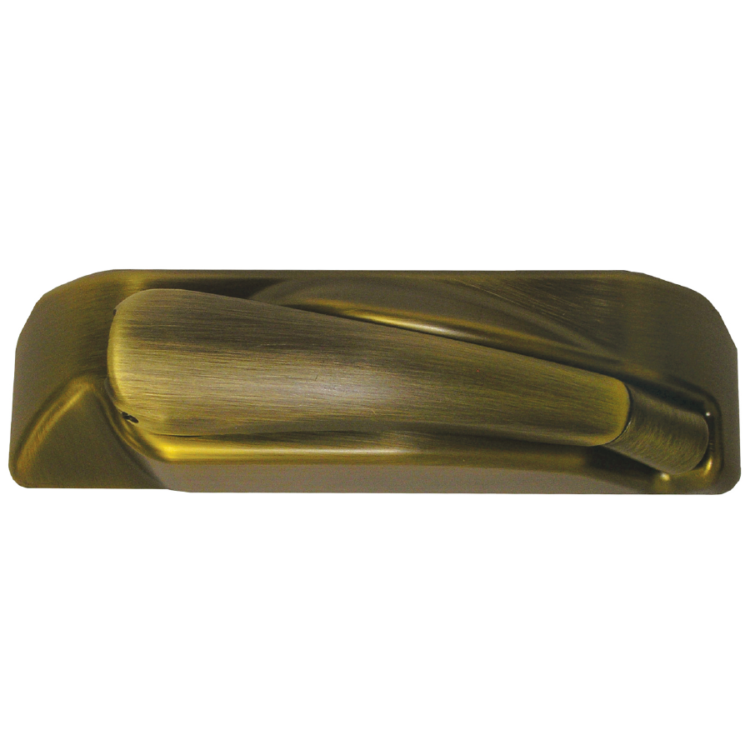

Casement Folding Handle - Antique Brass

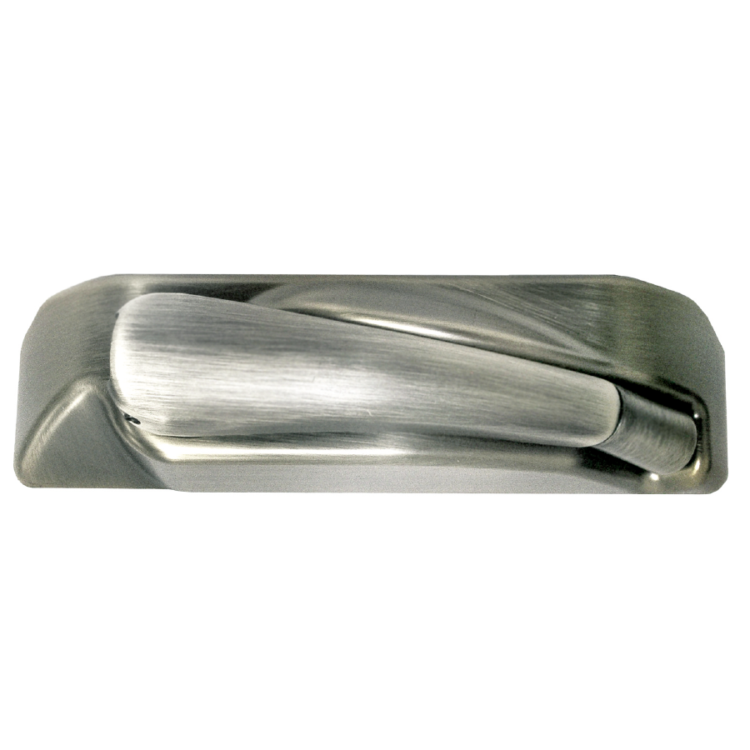

Casement Folding Handle - Brushed Nickel

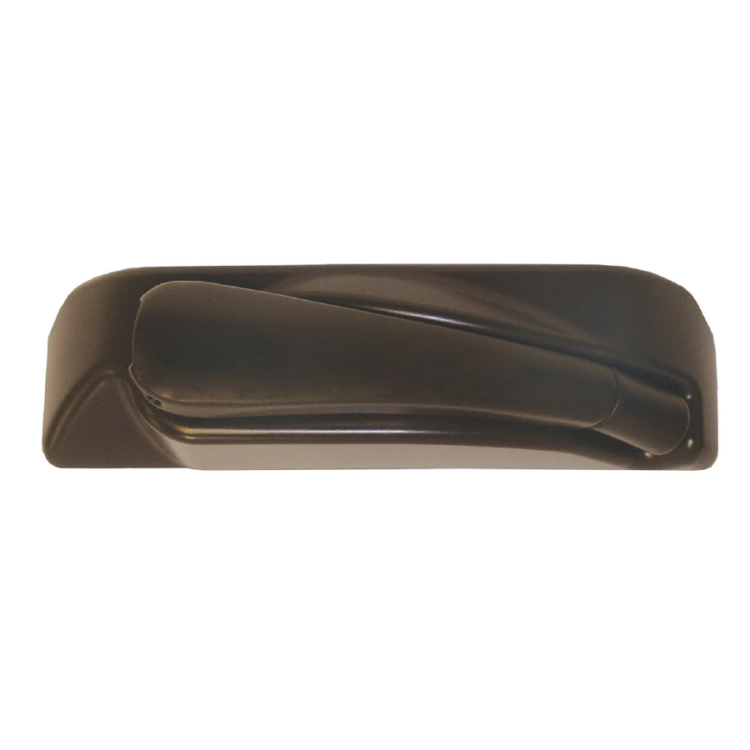

Casement Folding Handle - Oil Rubbed Bronze

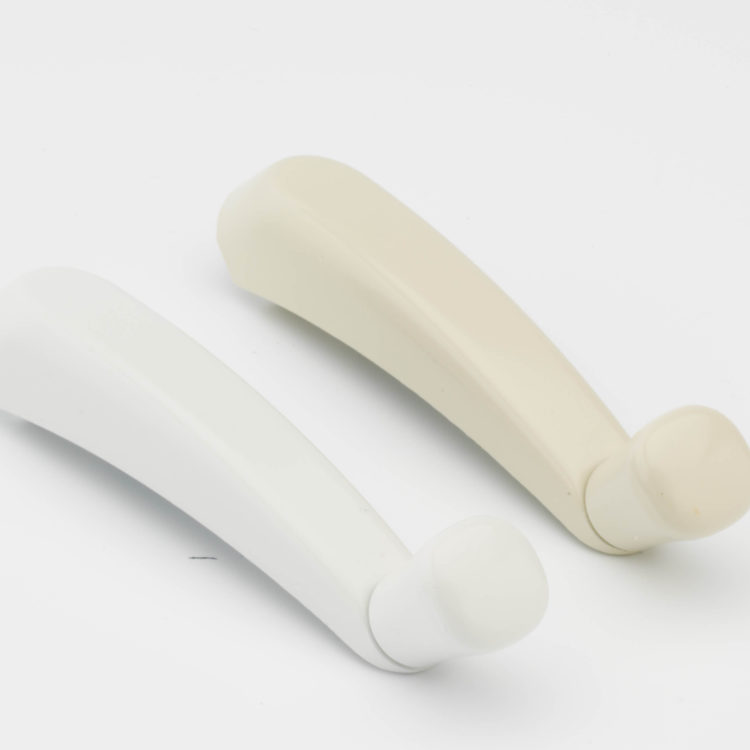

Contour Handle

Locks

Secure your windows with a variety of locking options.

There are no locks available for this window type.
